Smart Transit
New Paradigm of Tomorrow e-Mobility
Smart Transit
Smart Transit

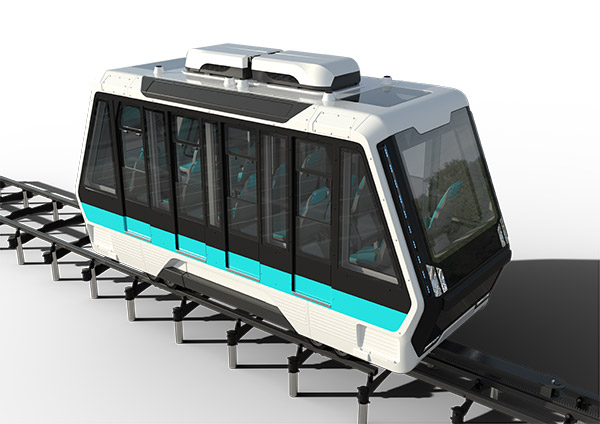

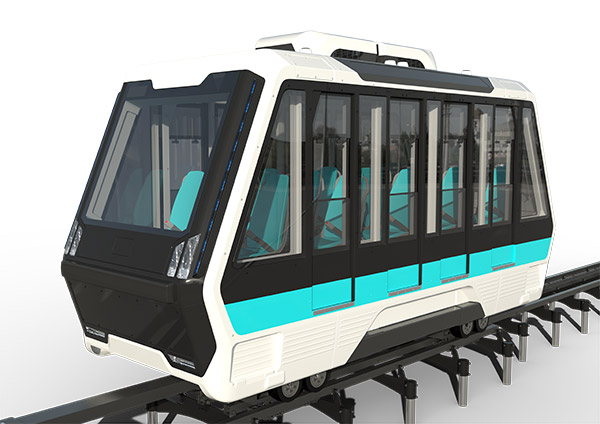

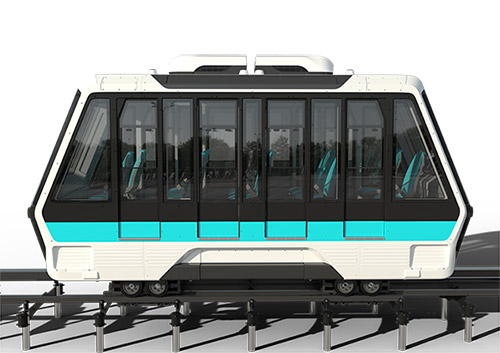

It is an orbital vehicle that uses multiple drive rails and can be combined transported at a speed of 5km/h to 20km/h. It is an intelligent means of transportation specialized in mountainous terrain and urban transport.
EMTC provides a theme for the new means of transport through intelligent transport by converging ICT technologies.
14-passenger luxury
Specification
| General specifications | Vehicle Size | L(2,010mm) * W(5,613mm) * H(2,926mm) |
|---|---|---|
| Seater | 14 Seater | |
| Maximum connections (amount) | Three doses | |
| Performance | Driving speed | Maximum speed 20 km/h / 5 km/h mountain speed |
| Maximum angle of equipotence | 41 % | |
| Drive transfer method | Motor decelerator drive wheel | |
| Driving method | Tyre and Leak Pinion Method | |
| Downhill slant brake | Power generation regenerative brake | |
| Main and stop brake | Coil-compressed electronic brake | |
| A drive motor | 24KW Power redundancy | |
| Control controller | Regenerative Braking & Electronic Disc Brake Control | |
| Integrated control | Integrated control through VCU | |
| Safety device | Stopping device | Electronic switch |
| Collision prevention system | 200m Vehicle Sensing Sensor Attachment | |
| Buffer bumper system | Protects the vehicle with spring-type buffer bumpers and short circuits. | |
| A quick brake | Automatic brake application when overspeed | |
| Way | Derailment Prevention Device | Anti-traffic roller method |
| Electronic disc brake | Spring-compressed electronic disc brake | |
| Current price system | Air spring | |
| Power and Drive | ON / OFF Switch & Forward Reverse Switch | |
| An emergency stop | Emergency Stop Switch |
