Smart Monorail
New Paradigm of Tomorrow e-Mobility
Mountains Type

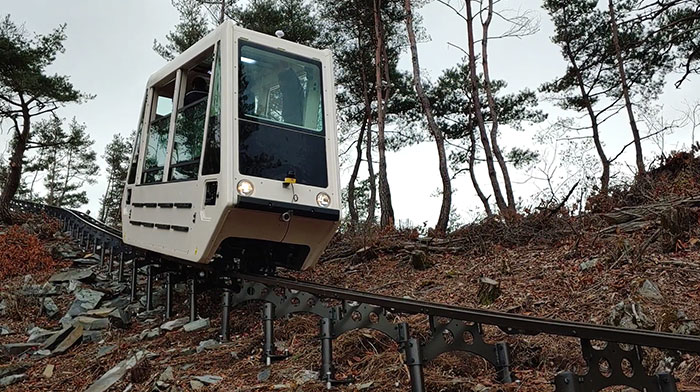

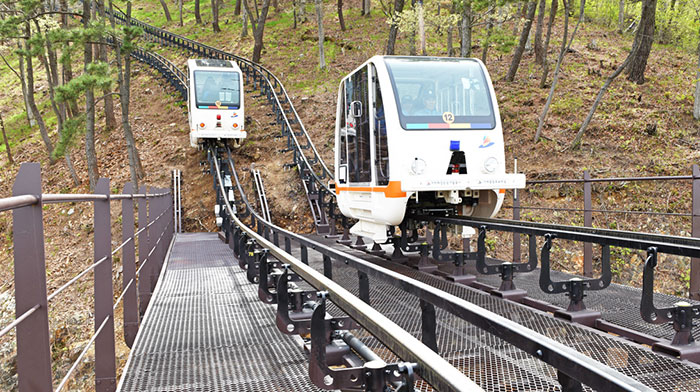

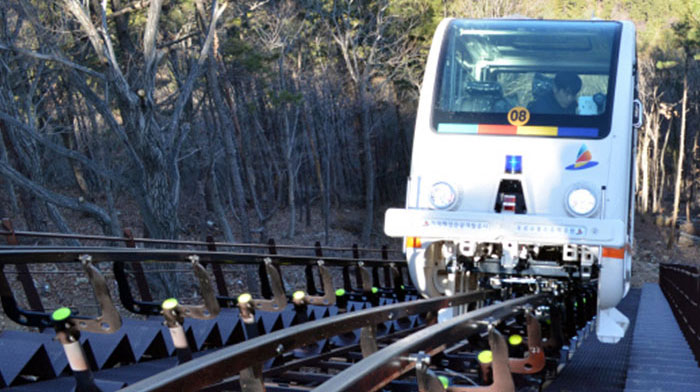

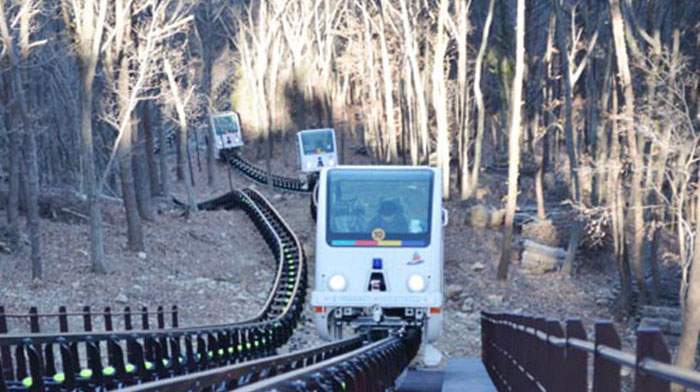

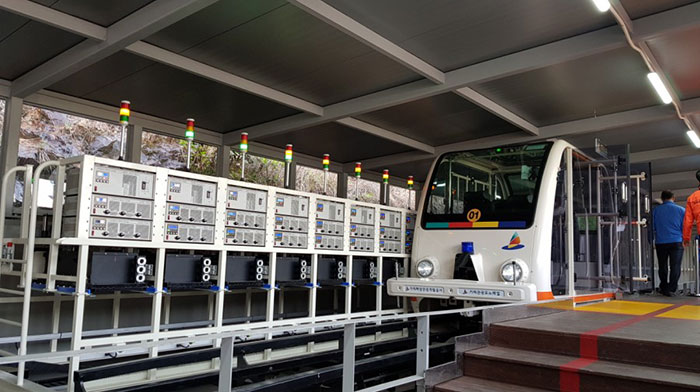

Mountains-type Monorail(eight-seater high-type) Mountains type
- · A new means of transportation that allows viewing of the 40 degree incline
- · Eco-friendly rail construction with rack centralized 3-line rail structure
- · It can be operated all year round with the automatic replacement of the air conditioning system and the battery
- · Application of Lightweight aluminum frame and 2-stage sliding door system
- · Application of autonomous driving-based unmanned operation system
- · Application of intelligent central control and central control system
- · Application of story experience system fused with MR technology (Option)
Specification
| General specifications | Vehicle Size | L(5.900mm) * W(1,580mm) * H(3,000mm) |
| Seater | 8 Seater | |
| Performance | Driving speed | 60m/m ~ 90m/m accelerated operation |
| Maximum isometric angle | 40° | |
| Driving method | Rack & Pinion | |
| Power redundancy | 24KW Power redundancy | |
| Integrated control | Integrated control through VCU | |
| Battery/Charge | LIB/Battery Automatic Replacement System | |
| Safety device | Stop device | Touch limit switch |
| Collision Prevention System | Attaching the object detection sensor | |
| Buffer bumper system | Protects the vehicle with spring-loaded buffer bumpers and power cuts | |
| Follow-up device | Auto-following the magnitudes before the distance interval | |
| Braking device | Regenerative braking, electronic braking, rapid braking triple safety system | |
| Derailment Prevention System | Up-and-down derailment roller method |

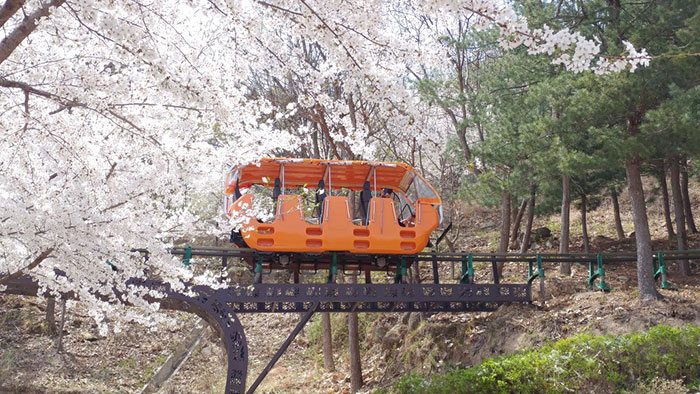

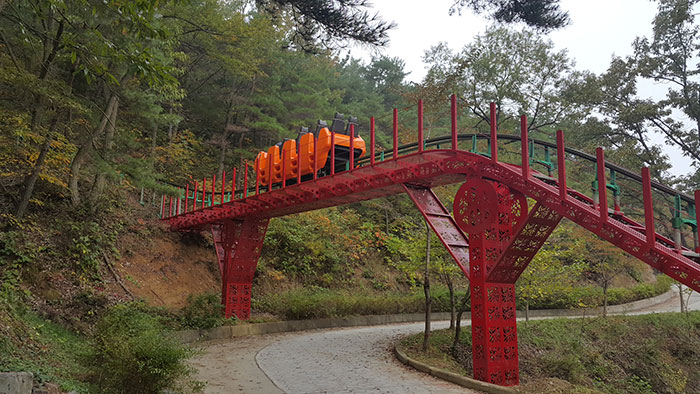

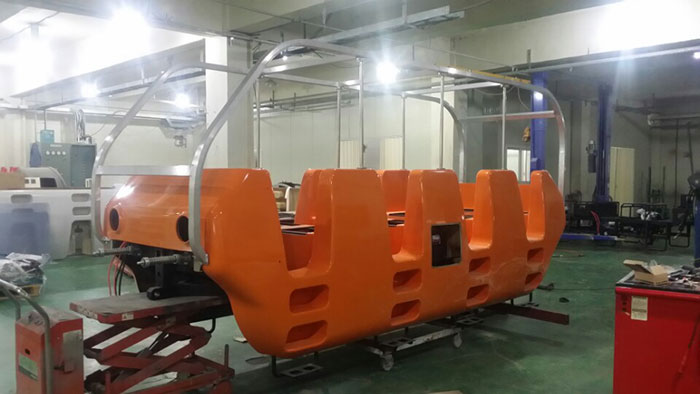

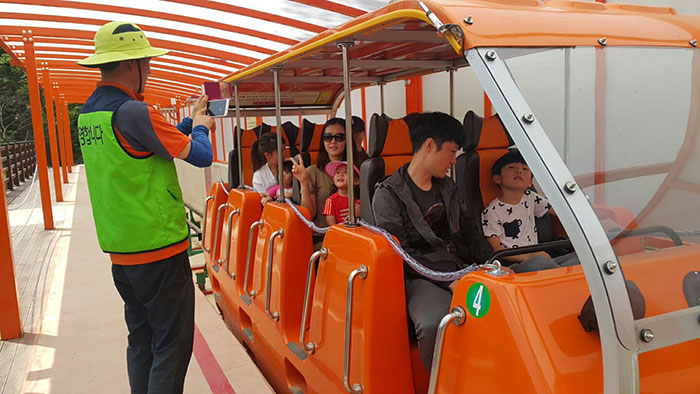

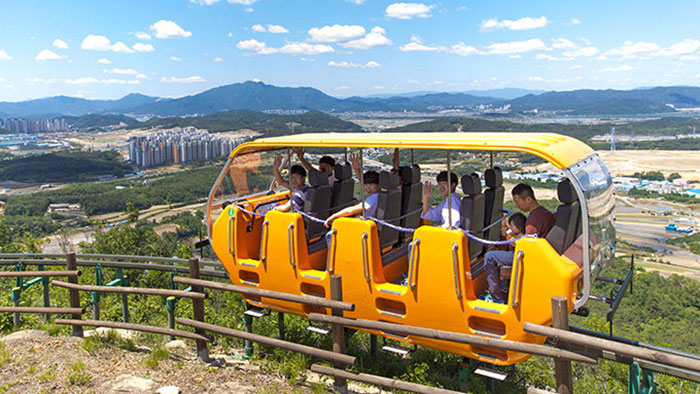

Mountains-type Monorail(eight-seater open type) Mountains type
- · An open type specializing in mountainous terrain for viewing natural landscapes and transportation for the transportation vulnerable
- · Eco-friendly rail construction with 3-line rail structure
- · Application of unmanned operation system based on integrated control and tracking sensor
Specification
| General specifications | Vehicle Size | L(4.200mm) * W(1,500mm) * H(2,300mm) |
| Seater | 8 Seater | |
| Performance | Driving speed | 60m/m ~ 90m/m accelerated operation |
| Maximum isometric angle | 26° | |
| Driving method | Rack & Pinion | |
| Power redundancy | 14KW Power redundancy | |
| Integrated control | Integrated control through VCU | |
| Battery/Charge | LIB/Rapid charging method | |
| Safety device | Stop device | Touch limit switch |
| Collision Prevention System | Attaching the object detection sensor | |
| Buffer bumper system | Protects the vehicle with spring-loaded buffer bumpers and power cuts | |
| Follow-up device | Auto-following the magnitudes before the distance interval | |
| Braking device | Regenerative braking, electronic braking, rapid braking triple safety system | |
| Derailment Prevention System | Up-and-down derailment roller method |

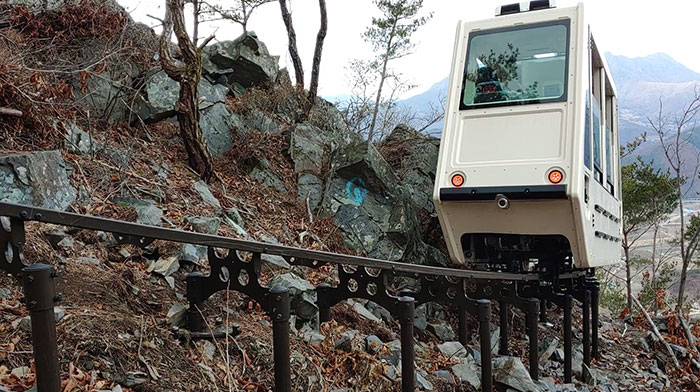

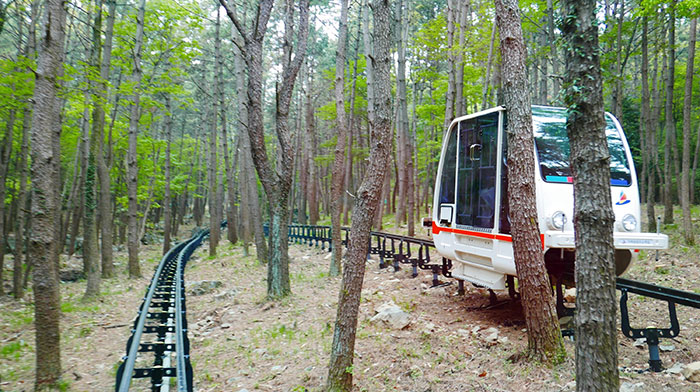

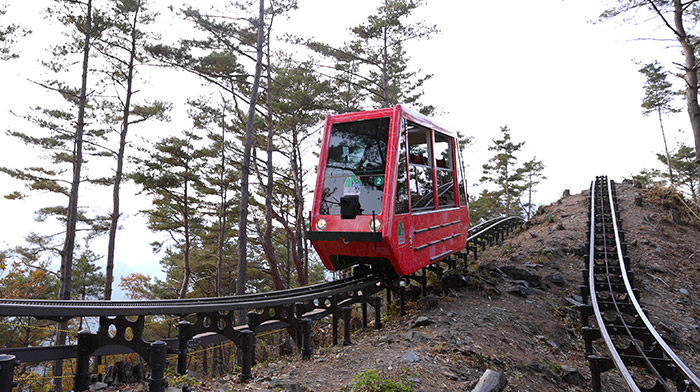

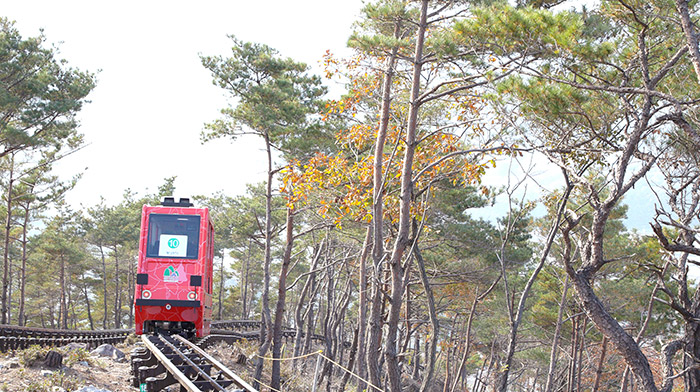

Mountains-type Monorail (six-seater cabin) Mountains type
- · Cabin type specializing in mountainous terrain for viewing natural scenery and transportation for the weak
- · Eco-friendly rail construction with 2-line rail structure
- · Can be operated all year round with automatic battery replacement
- · Application of autonomous driving-based unmanned operation system
- · Application of intelligent central control and central control system
Specification
| General specifications | Vehicle Size | L(3.900mm) * W(1,500mm) * H(2,300mm) |
| Seater | 6 Seater | |
| Performance | Driving speed | 60m/m ~ 90m/m accelerated operation |
| Maximum isometric angle | 26° | |
| Driving method | Rack & Pinion | |
| Power redundancy | 17KW Power redundancy | |
| Integrated control | Integrated control through VCU | |
| Battery/Charge | LIB/Battery automatic exchange method | |
| Safety device | Stop device | Touch limit switch |
| Collision Prevention System | Attaching the object detection sensor | |
| Buffer bumper system | Protects the vehicle with spring-loaded buffer bumpers and power cuts | |
| Follow-up device | Auto-following the magnitudes before the distance interval | |
| Braking device | Regenerative braking, electronic braking, rapid braking triple safety system | |
| Derailment Prevention System | Up-and-down derailment roller method |

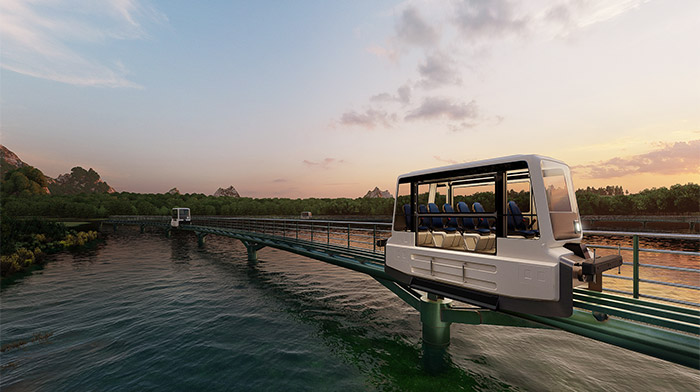

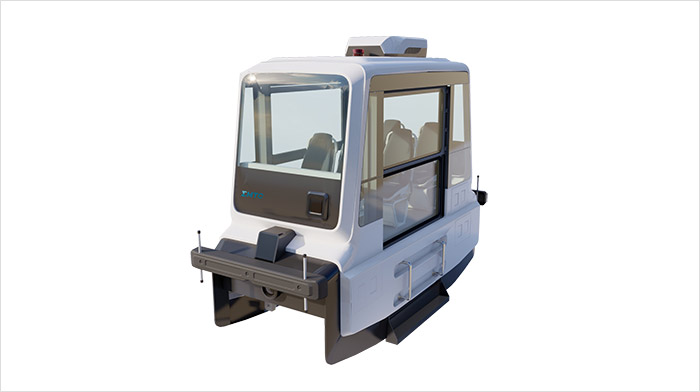

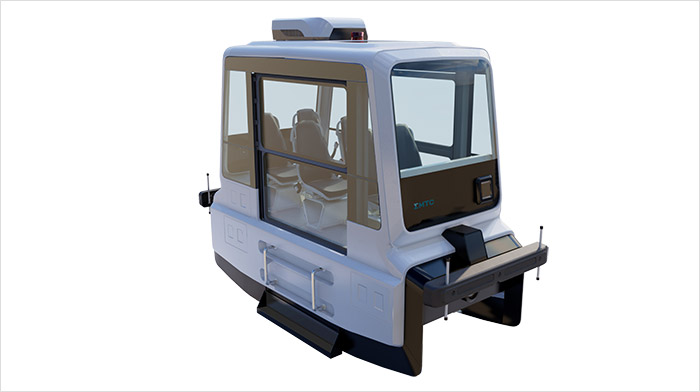

Mountains-type Monorail (six-seater high) Mountains type
- · Smart Monorail New Model with sensual design
- · Eco-friendly rail construction with rack centralized 3-line rail structure
- · It can be operated all year round with the automatic replacement of the air conditioning system and the battery
- · Application of Lightweight aluminum frame and 2-stage sliding door system
- · Application of autonomous driving-based unmanned operation system
- · Application of intelligent central control and central control system
- · Application of story experience system fused with MR technology (Option)
Specification
| General specifications | Vehicle Size | L(3.920mm) * W(1,600mm) * H(2,830mm) |
| Seater | 6 Seater | |
| Performance | Driving speed | 60m/m ~ 90m/m accelerated operation |
| Maximum isometric angle | 43° | |
| Driving method | Rack & Pinion | |
| Power redundancy | 12KW Power redundancy | |
| Integrated control | Integrated control through VCU | |
| Battery/Charge | LIB/Battery Automatic Replacement System | |
| Safety device | Stop device | Touch limit switch |
| Collision Prevention System | Attaching the object detection sensor | |
| Buffer bumper system | Protects the vehicle with spring-loaded buffer bumpers and power cuts | |
| Follow-up device | Auto-following the magnitudes before the distance interval | |
| Braking device | Regenerative braking, electronic braking, rapid braking triple safety system | |
| Derailment Prevention System | Up-and-down derailment roller method |
